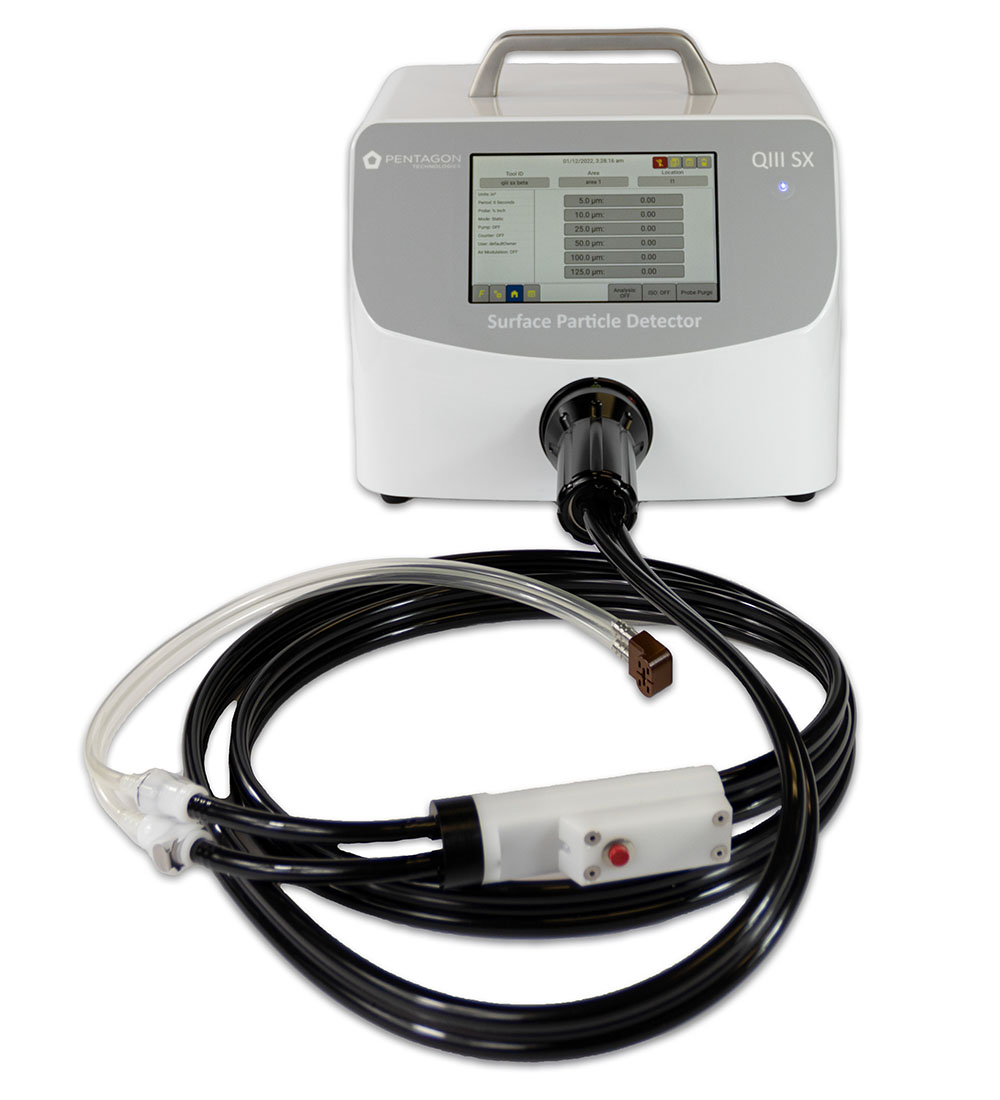

QIII SX™

URFACE PARTICLE DETECTOR 5-125um

Pentagon Technologies’ line of surface particle detectors are the standard in high technology industries for measuring and controlling surface contamination. Particles that accumulate on critical surfaces or products can reduce yield and reliability. Particles below 100um in diameter are very difficult to see with the naked eye. These particles settle fast and escape routine air monitoring.

The QIII SX measures particles in the sub visible to visible range (5-125um). Use the QIII SX to find and eliminate particles that cost you time and money.

Benefits

Instant measurements of surface particulate
Improve yield by reducing particles in products
Minimize troubleshooting time by quickly identifying particle sources
Monitor and set limits for particle density on incoming or outgoing materials
Drive continuous improvement through establishing a surface particle baseline

Test to standardized ISO 14644-9 classification of a surface cleanliness
Data integration into SPC systems.
BKM Mode Option - to drive consistency in measurements and specifications
Capture counted particles for analysis with optional Particle Analysis Module
21 CFR Part 11 Compliance for life-science applications

Technical Description

Particle sensitivity range: 5um - 125um
Channels: 5, 10, 25, 50, 100, 125um
Sensor: Laser Diode
Size & Weight: 12” W X 10.5” D X 9” H, 18.5 lbs

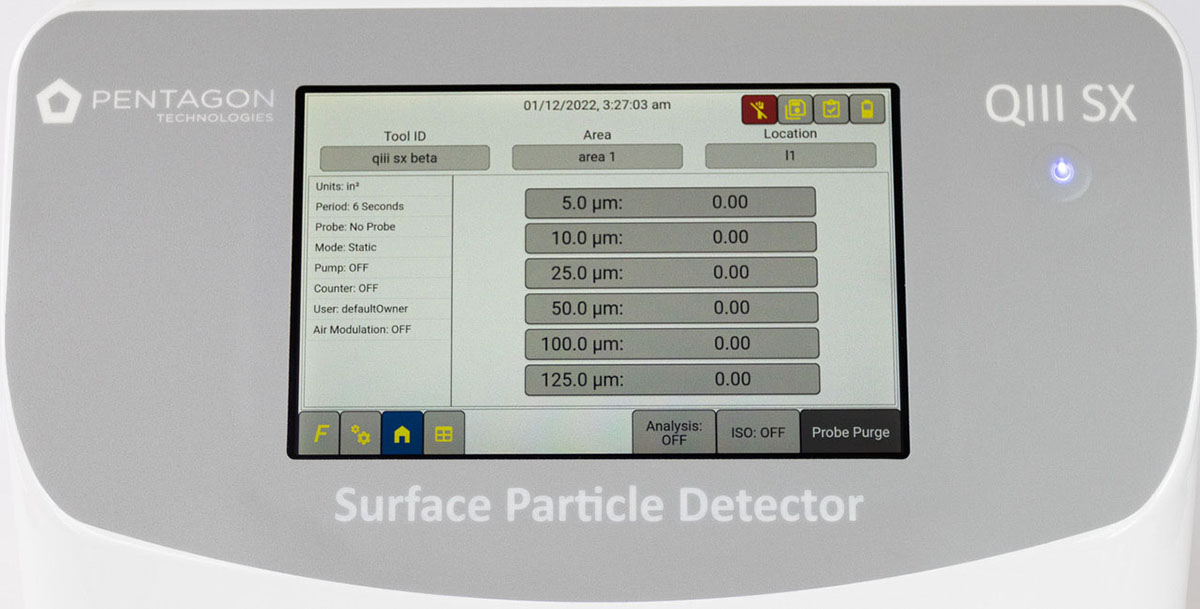

Batteries: (2) Lithium Ion, hot swappablevDisplay: 7” WVGA, sealed touch screen interface with pinch zoom.
Data Units: Particle Density and Raw counts
Advanced user interface with Data Analysis Mode for averaging surface particle measurements
Data Output: USB port, ethernet, optional WiFi
Probe Included: ½” right angle probe.

Purge Options Included: Purge Filter to zero count the detector and a Purge Probe Function to zero count the probe.
Self cleaning mode with 50% increased air flow
Input power: 100-240 VAC, 50/60 hz
Sampling Modes: Static and Dynamic
CE Certified
Languages: English, Chinese, Japanese, Korean
Made in the USA
